Microservice Architecture

Overview

Silky adopts a classic microservice architecture built around:

Service isolation: Each service owns its own database and is independently deployable
RPC communication: Inter-service calls via DotNetty TCP (binary protocol)
Service discovery: Centralized registry (Zookeeper / Nacos / Consul)
Unified gateway: Single external entry point via a dedicated gateway host

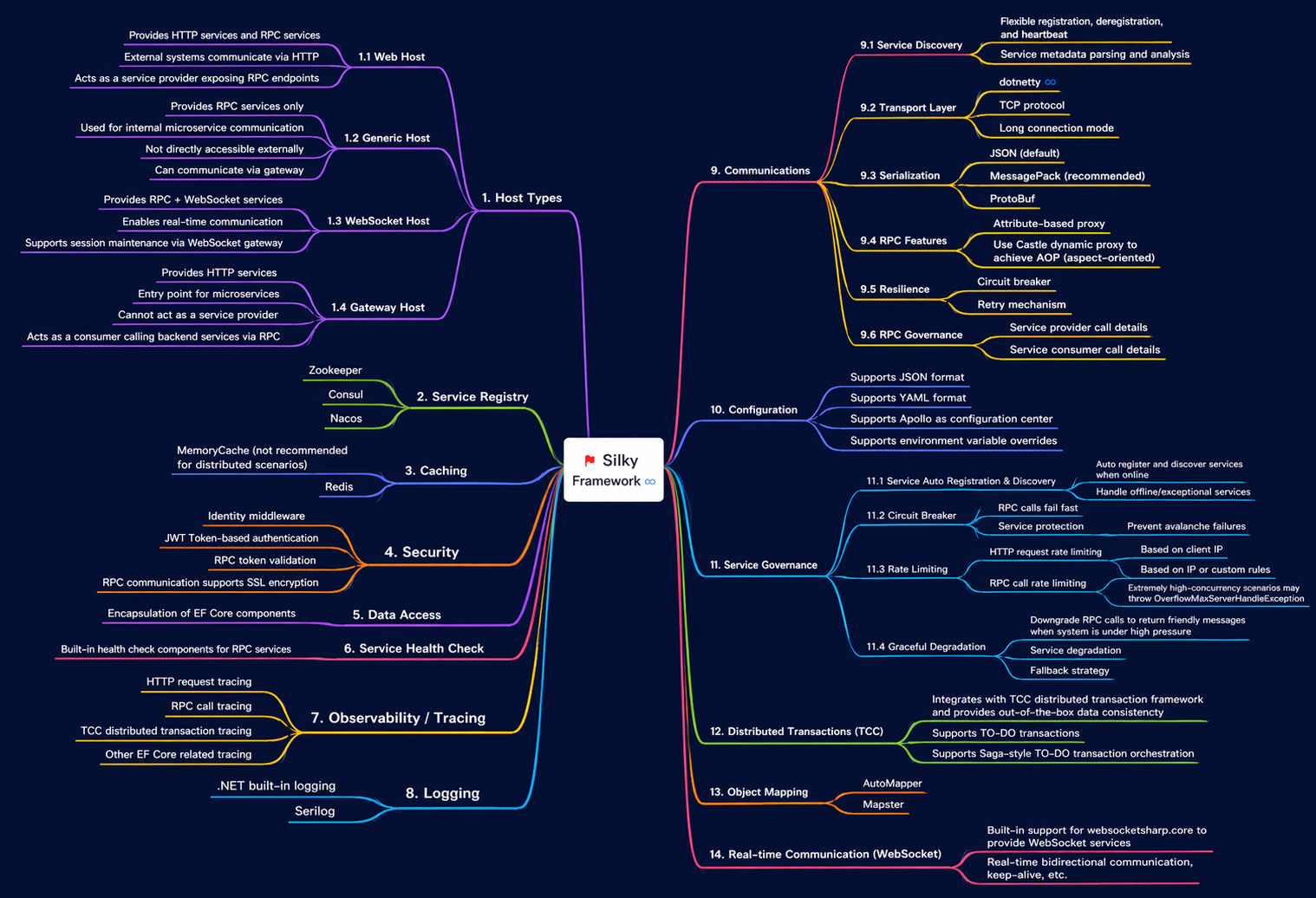

Architecture Diagram

microservice-architecture

The typical deployment topology:

External Clients (Web, Mobile, Third-party)
          │
          ▼
  ┌───────────────────┐
  │   Gateway Host    │  Routes HTTP requests to internal RPC calls
  └───────────────────┘
          │
    ┌─────┴──────┐
    │  Registry  │  (Zookeeper / Nacos / Consul)
    └─────┬──────┘
          │ service discovery
    ┌─────┴─────────────────────────┐
    │        Internal Services      │
    │  ┌──────────┐  ┌──────────┐  │
    │  │ Service A│  │ Service B│  │
    │  │  (RPC)   │  │  (RPC)   │  │
    │  └──────────┘  └──────────┘  │
    └───────────────────────────────┘
          │
    ┌─────┴──────────────────────────┐
    │         Infrastructure         │
    │  Redis  │  DB  │  MQ  │  ...   │
    └─────────────────────────────────┘

Project Structure Convention

A standard Silky microservice solution follows a layered project structure:

MySolution/
  MySolution.sln
  src/
    GatewayHost/                       # Gateway
    OrderService/
      OrderService.Host/               # Startup host
      OrderService.Application/        # Application service implementations
      OrderService.Application.Contracts/  # Interfaces & DTOs (shared)
      OrderService.Domain/             # Entities, domain services
      OrderService.Domain.Shared/      # Enums, constants, shared types
      OrderService.EntityFrameworkCore/ # DbContext, migrations

The Application.Contracts project contains only interfaces and DTOs and is referenced by both the service implementation and by clients (other services that call it).

Communication Patterns

RPC (Inter-Service)

Service A  ──RPC──▶  Service B

DotNetty TCP binary protocol
Address resolved via registry at startup
Load balancing from local cache
Governance applied (timeout, circuit break, retry)

HTTP (External → Gateway)

External Client  ──HTTP──▶  Gateway  ──RPC──▶  Internal Service

Gateway maps REST endpoints to service entry IDs
Swagger aggregation for API documentation
JWT authentication on the gateway layer

Message Queue (Async)

Service A  ──Publish──▶  MassTransit  ──Consume──▶  Service B

Use Silky.MassTransit for event-driven integration
Suitable for non-blocking or cross-domain events

Multi-Tenant & Cross-Cutting Concerns

Silky propagates the following through the RpcContext automatically:

Concern	How
User Identity	JWT claims extracted at gateway, propagated in `RpcContext`
Tenant ID	Propagated via `RpcContext` attachments
Trace ID	SkyAPM / correlation ID from the outer HTTP context
Request Metadata	Custom `RpcContext` attachments

Domain-Driven Design Alignment

Silky is designed to complement DDD:

DDD Layer	Silky Mapping
Interfaces (API)	`IXxxxAppService` + `[ServiceRoute]`
Application	`XxxxAppService` implementations
Domain	Entities, domain services, repositories
Infrastructure	EFCore DbContext, cache, message bus
